Spyder Object
in Trunk Sensor

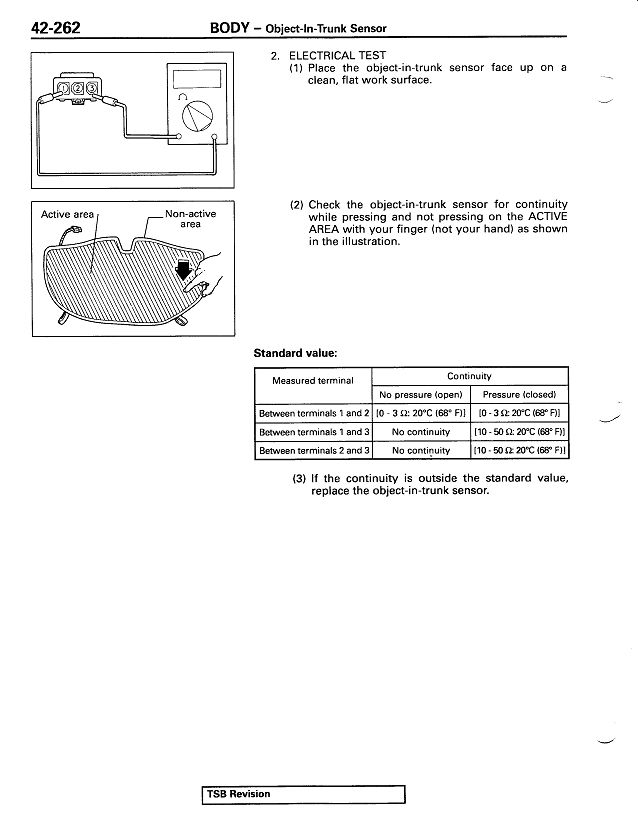

The following are scans from the Spyder service manual.
This could be used by the creative electrical types to bypass the
sensor and it's $1,500 repair bill. Not that I'm advocating
such a thing...but if you want to do it, you
simply need to short the circuit between pins 1 and 2. This
can be done with a piece of wire. Make sure to wrap it in tape
to prevent short circuits with the chassis. This could be the
simplest repair in all of Spyderhood! (Thanks to Matt J. for
the hints.)
|
